[Blackmax] Interesting eta distributions from BlackMaxChris Pollard chris.pollard at duke.eduFri Jul 23 09:38:48 BST 2010

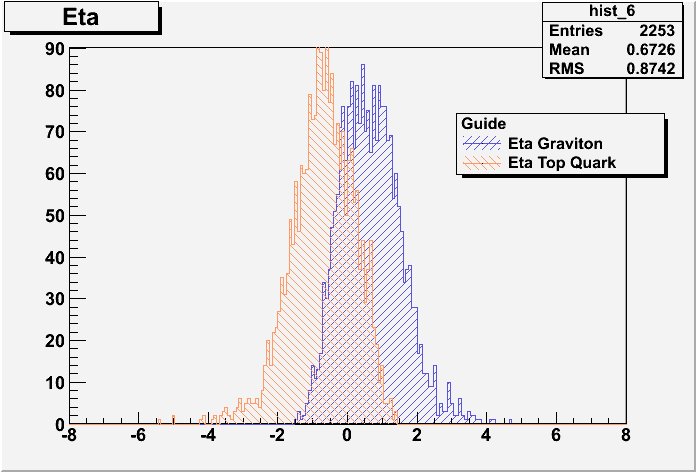

Hello BlackMax authors, A few of my colleagues at Duke and I have been using with your generator off and on for a year now, and we've recently found some puzzling eta distributions coming out of it. For instance, I've attached graph that comes from proton-proton collisions at 7 TeV with the two particle final state setting on. This is for the top+graviton channel. We can't think of why the eta distributions for the tops and gravitons would be asymmetric at a proton-proton collider, We see similar asymmetries for the top+bottom and top+strange final state eta distributions, while top+charm and top+up final states are symmetric, as expected. One other thing we've noticed is that for whatever reason, the generator output is always "sorted" based on some parameter when the asymmetry arises. For instance, when the final state is top+charm, the top can be either the first or second particle listed in the output, each about half the time. But in the top+graviton final state, the top is *always* listed second, and in the tob+bottom final state, always first. This seems strange to us, but perhaps we are overlooking something? I've also attached my parameter.txt file if that helps. Maybe I have an error there. Thanks for your time! Chris Pollard -------------- next part -------------- An HTML attachment was scrubbed... URL: http://www.hepforge.org/lists-archive/blackmax/attachments/20100723/2c99551f/attachment-0001.htm -------------- next part -------------- Number_of_simulations 100000 incoming_particle(1:pp_2:ppbar_3:ee+) 1 Center_of_mass_energy_of_incoming_particle 7000 M_pl(GeV) 1000. definition_of_M_pl:(1:M_D_2:M_p_3:M_DL_4:put_in_by_hand) 1 if_definition==4 1. Choose_a_case:(1:tensionless_nonrotating_2:tension_nonrotating_3:rotating_nonsplit_4:Lisa_two_particles_final_states) 4 number_of_extra_dimensions 6 number_of_splitting_dimensions 0 size_of_brane(1/Mpl) 1.0 extradimension_size(1/Mpl) 1.0 tension(parameter_of_deficit_angle:1_to_0) 1.0 choose_a_pdf_file(200_to_240_cteq6)Or_>10000_for_LHAPDF 200 Chose_events_by_center_of_mass_energy_or_by_initial_black_hole_mass(1:center_of_mass_2:black_hole_mass) 2 Minimum_mass(GeV) 1000. Maxmum_mass(GeV) 14000. Include_string_ball:(1:no_2:yes) 1 String_scale(M_s)(GeV) 1000 string_coupling(g_s) 0.8 The_minimum_mass_of_a_string_ball_or_black_hole(in_unit_Mpl) 1. fix_time_step(1:fix_2:no) 2 time_step(1/GeV) 1.e-5 other_definition_of_cross_section(0:no_1:yoshino_2:pi*r^2_3:4pi*r^2) 0 calculate_the_cross_section_according_to(0:the_radius_of_initial_black_hole_1:centre_of_mass_energy) 0 calculate_angular_eigen_value(0:calculate_1:fitting_result) 0 Mass_loss_factor(0~1.0) 0.0 momentum_loss_factor(0~1.0) 0.0 Angular_momentum_loss_factor(0~1.0) 0.0 turn_on_graviton(0:off_1:on) 1 Seed 123589541 Write_LHA_Output_Record?_0=NO__1=Yes_2=More_Detailed_output 2 L_suppression(1:none_2:delta_area_3:anular_momentum_4:delta_angular_momentum) 1 angular_momentum_suppression_factor 1 charge_suppression(1:none_2:do) 1 charge_suppression_factor 1 color_suppression_factor .20 split_fermion_width(1/Mpl)_and_location(from-15to15)(up_to_9extradimensions) u_quark_Right(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 u_quark_Left(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 u_bar_quark_Right(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 u_bar_quark_Left(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 d_quark_Right(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 d_quark_Left(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 d_bar_quark_Right(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 d_bar_quark_Left(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 s_quark_Right(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 s_quark_Left(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 s_bar_quark_Right(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 s_bar_quark_Left(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 c_quark_Right(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 c_quark_Left(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 c_bar_quark_Right(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 c_bar_quark_Left(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 b_quark_Right(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 b_quark_Left(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 b_bar_quark_Right(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 b_bar_quark_Left(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 t_quark_Right(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 t_quark_Left(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 t_bar_quark_Right(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 t_bar_quark_Left(Note:do_not_insert_blank_spaces) 1.0 10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 e_-_Left(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 e_-_Right(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 e_+_Left(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 e_+_Right(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 mu_-_Left(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 mu_-_Right(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 mu_+_Left(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 mu_+_Right(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 tau_-_Left(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 tau_-_Right(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 tau_+_Left(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 tau_+_Right(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 nutrino_e-(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 nutrino_e+(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 nutrino_mu-(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 nutrino_mu+(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 nutrino_tau-(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 nutrino_tau+(Note:do_not_insert_blank_spaces) 1.0 -10.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0 number_of_conservation 1 d,s,b,u,c,t,e,mu,tau,nu_e,nu_mu,nu_tau 1,1,1,1,1,1,0,0,0,0,0,0 0,0,0,0,0,0,1,1,1,1,1,1 -------------- next part -------------- A non-text attachment was scrubbed... Name: tGeta.gif Type: image/gif Size: 14121 bytes Desc: not available Url : http://www.hepforge.org/lists-archive/blackmax/attachments/20100723/2c99551f/attachment-0001.gif
